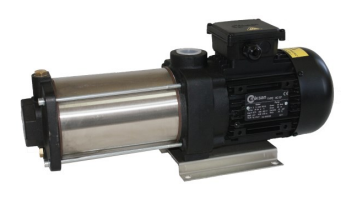

Usage Areas:

• Machine Tools: HC Pump is used to pump cooling and lubrication fluids, extending tool life and providing more precise and smoother machining.
• Erosion Machines: HC Pump is used to pump abrasive fluids in erosion machines.
• Circulation Systems: HC Pump ensures continuous fluid circulation in systems, enabling more effective heat transfer and cooling processes.

Fluids:

HCPOMPA can pump a wide range of fluids:

• Cooling fluids
• Cutting oils
• Grinding oils
• Water

Properties of Pumped Fluids:

• Fluid temperature should be between 0°C and 80°C.
• Kinematic viscosity should be between 1 and 30 mm²/s.

Materials:

HCPOMPA is manufactured using high-quality stainless steel materials to ensure long-lasting and durable performance:

• Pump body and connection housing: Cast iron - DIN GG 25
• Diffuser, impeller, and casing tube: Stainless steel - DIN 4301 (AISI 304)
• Pump shaft: Stainless steel - DIN 4401 (AISI 316)
• O-ring: Viton
• Mechanical seal: C - SiC - Viton (Optional: TC - TC - Viton)

Electric Motor:

HCPOMPA operates with 3-phase asynchronous motors and has an IP 55 protection rating, making it resistant to challenging working conditions. A 2-pole motor option is available.

Other Key Features of HC Pump:

• Easy installation and maintenance
• Wide performance range
• Durable and robust stainless steel construction
• Resistance to abrasive fluids
• Quiet operation
