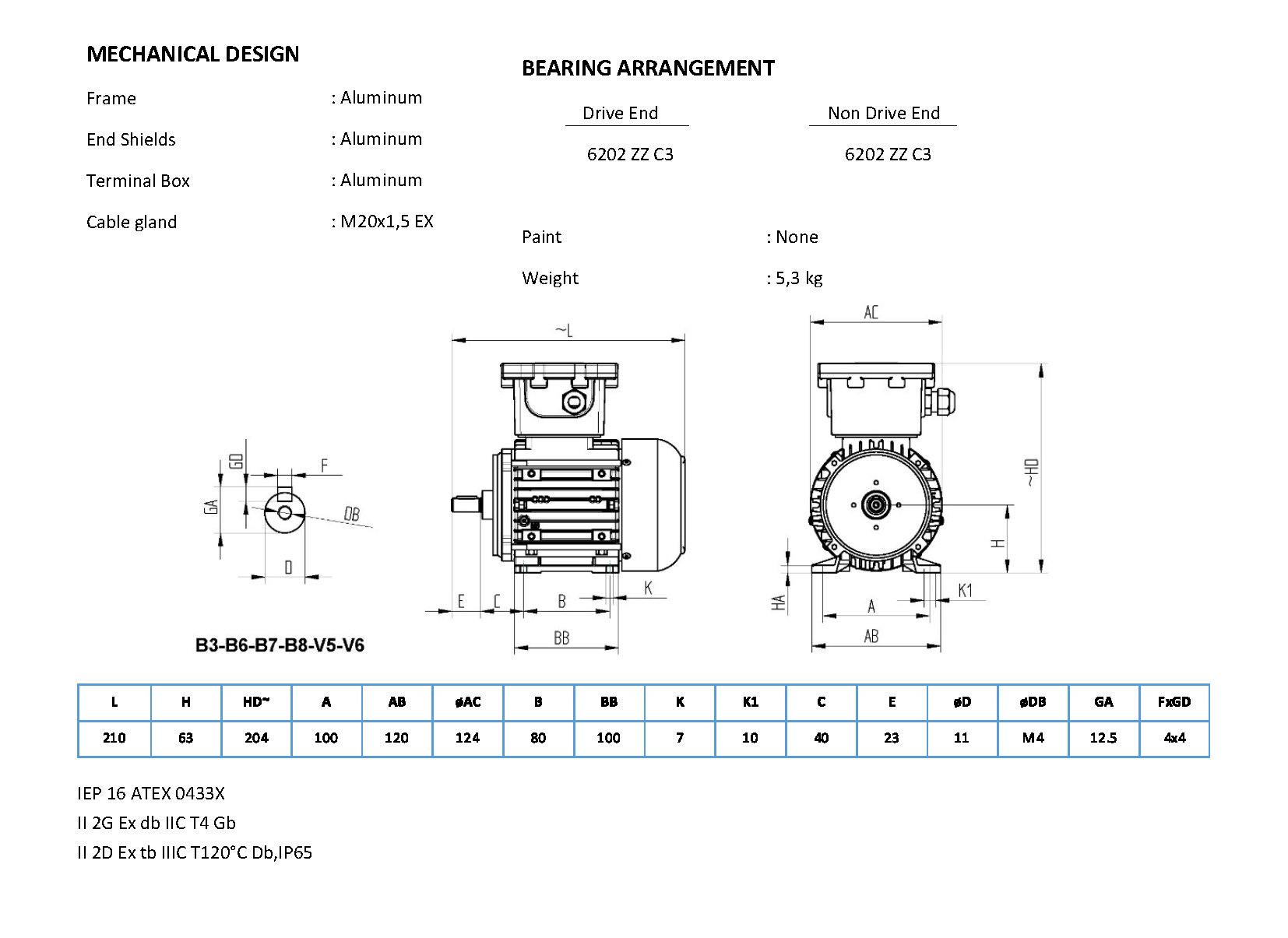

63 2B EX (0,25 kW-0,30 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Categories | Description |
|---|---|
| Motor Name | 63 2B EX |
| Pn (kW), 50 Hz | 0.25 |
| Pn (kW), 60 Hz | 0.30 |
| HP, 50 Hz | 0.34 |
| HP, 60 Hz | 0.41 |
| min-1, 50 Hz | 2755 |
| min-1, 60 Hz | 3310 |
| Tn, Nm | 0.87 |
| cos φ | 0.78 |
| In, 400V | 0.70 |
| Ia/In | 4.5 |
| Ma/Mn | 2.4 |
| Mk/Mn | 2.8 |
| J, kgm2 | 0.00012 |
| kg | 5.3 |
