71 2A EX (0,37 kW- 0,44 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category |
Description |
| Motor Name |
71 2A EX |
| Pn (kW), 50 Hz |
0.37 |
| Pn (kW), 60 Hz |
0.44 |
| HP, 50 Hz |
0.50 |
| HP, 60 Hz |
0.60 |
| min-1, 50 Hz |
2790 |
| min-1, 60 Hz |
3350 |
| Tn, Nm |
1.25 |
| cos φ |
0.71 |
| In, 400V |
1.10 |
| Ia/In |
4.0 |
| Ma/Mn |
2.5 |
| Mk/Mn |
2.6 |
| J, kgm2 |
0.00032 |
| kg |
6.5 |

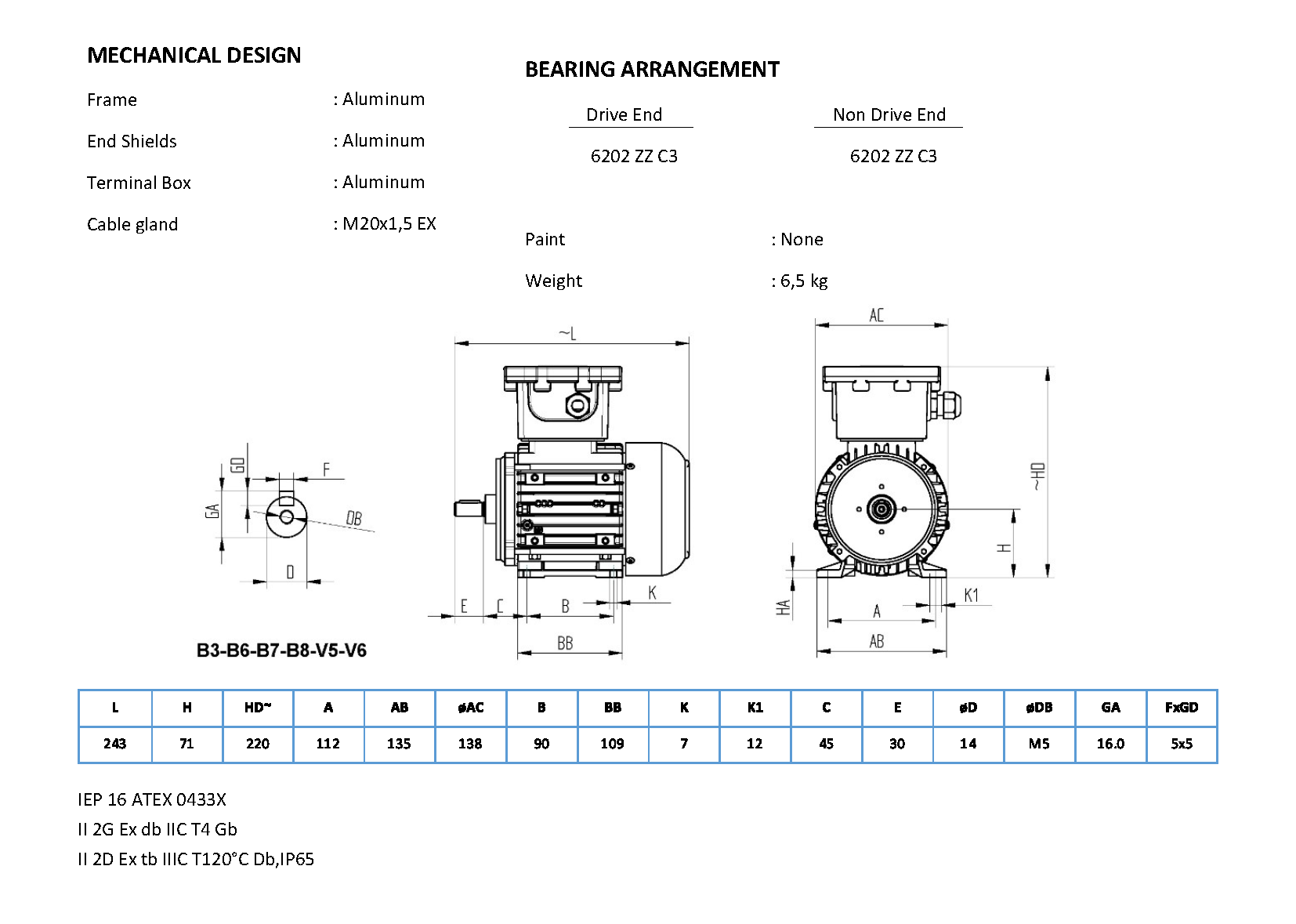

Technical Drawings
Note: Your browser may ask for permission to download multiple files.
