71 2B EX (0,55 kW-0,66 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category |
Description |
| Motor Name |
71 2B EX |
| Pn (kW), 50 Hz |
0.55 |
| Pn (kW), 60 Hz |
0.66 |
| HP, 50 Hz |
0.74 |
| HP, 60 Hz |
0.98 |
| min-1, 50 Hz |
2760 |
| min-1, 60 Hz |
3310 |
| Tn, Nm |
1.90 |
| cos φ |
0.80 |
| In, 400V |
1.45 |
| Ia/In |
4.5 |
| Ma/Mn |
2.4 |
| Mk/Mn |
2.5 |
| J,kgm2 |
0.00065 |
| kg |
7.4 |

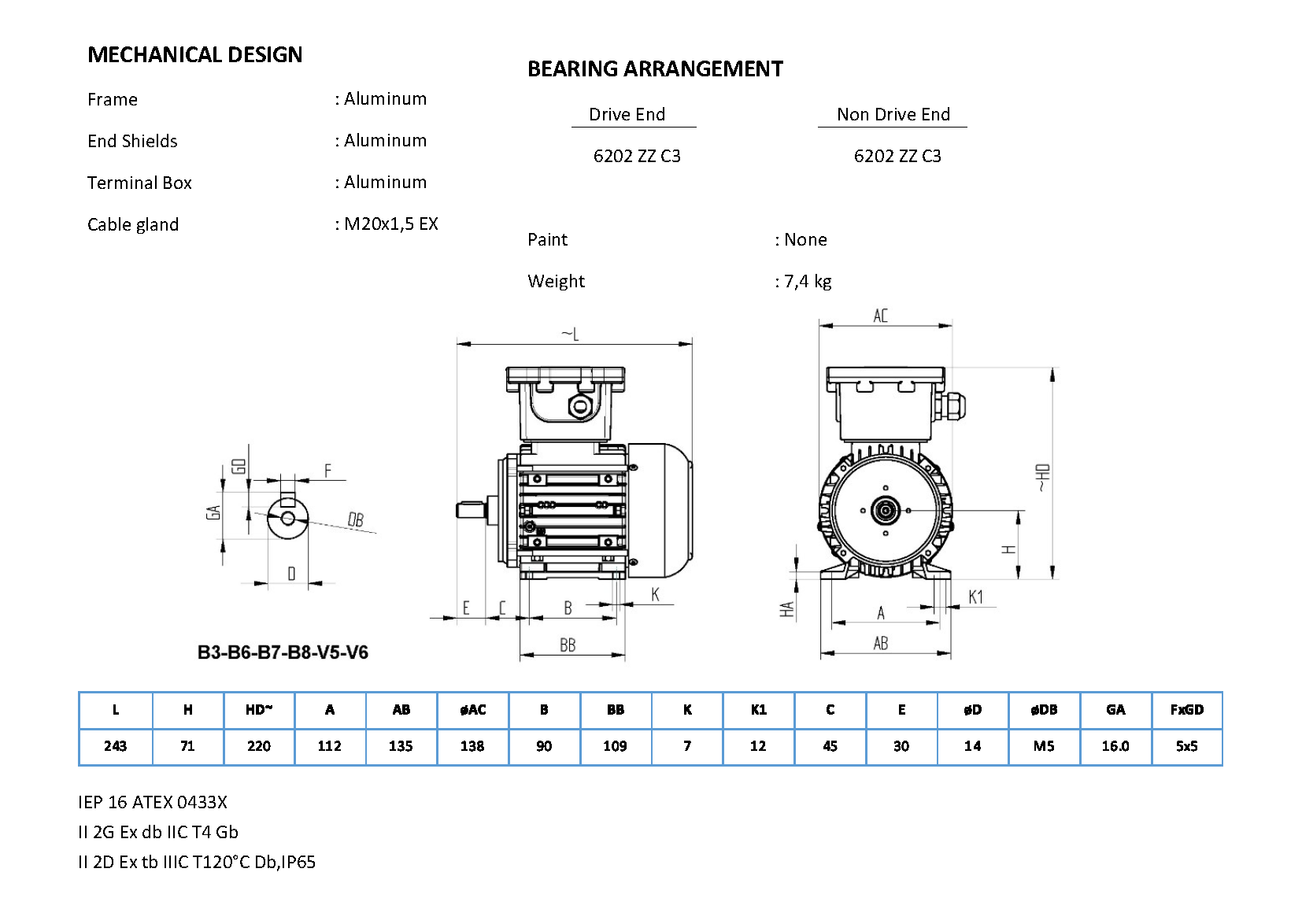

Technical Drawings
Note: Your browser may ask for permission to download multiple files.
