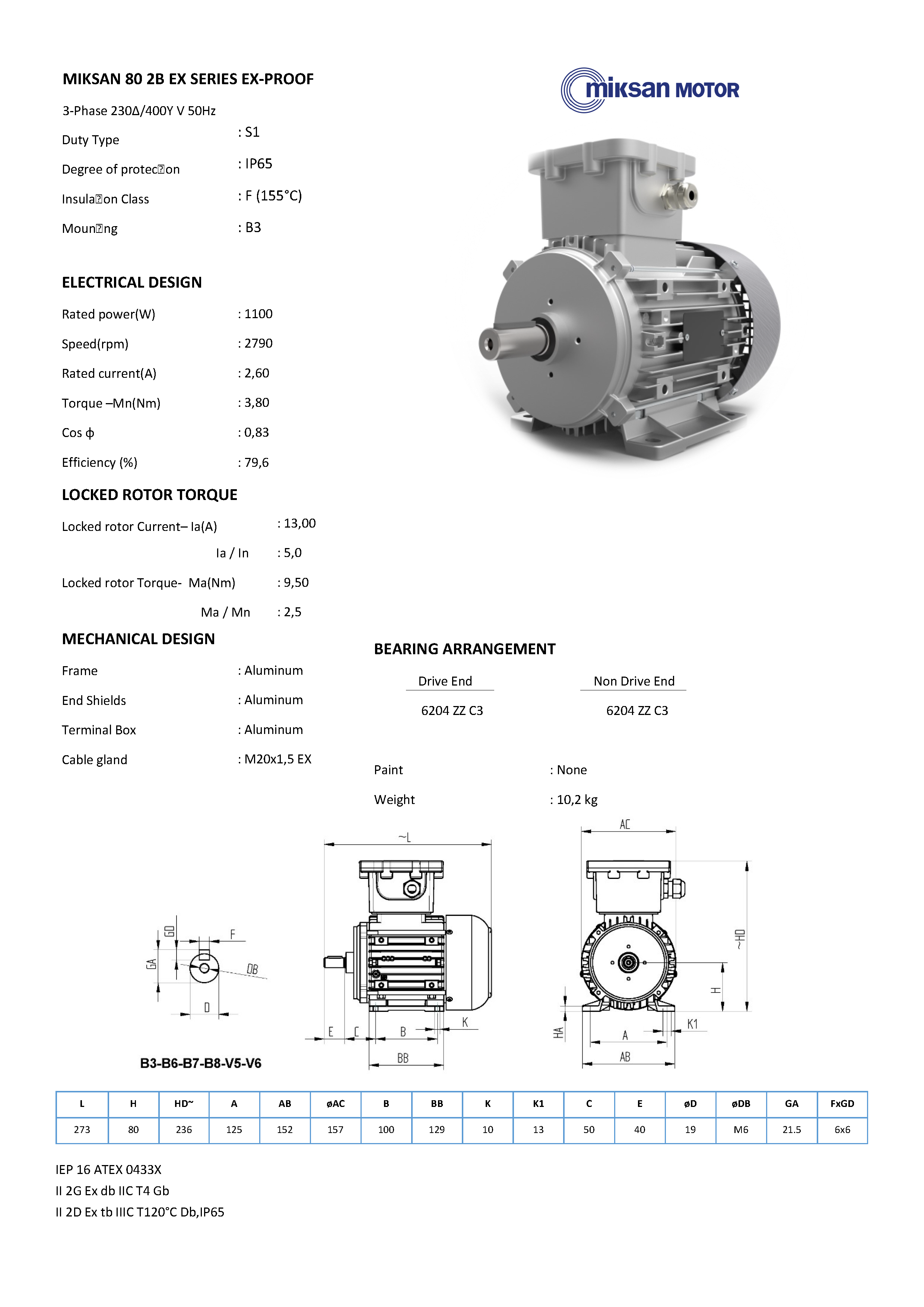

80 2B EX (1,10 kW-1,32 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category | Description |
|---|---|
| Motor Name | 80 2B EX |
| Pn (kW), 50 Hz | 1.10 |
| Pn (kW), 60 Hz | 1.32 |
| HP, 50 Hz | 1.50 |
| HP, 60 Hz | 1.80 |
| min-1, 50 Hz | 2790 |
| min-1, 60 Hz | 3350 |
| Tn, Nm | 3.80 |
| cos φ | 0.83 |
| In, 400V | 2.60 |
| Ia/In | 5.0 |
| Ma/Mn | 2.5 |
| Mk/Mn | 3.2 |
| J, kgm2 | 0.00087 |
| kg | 10.2 |
