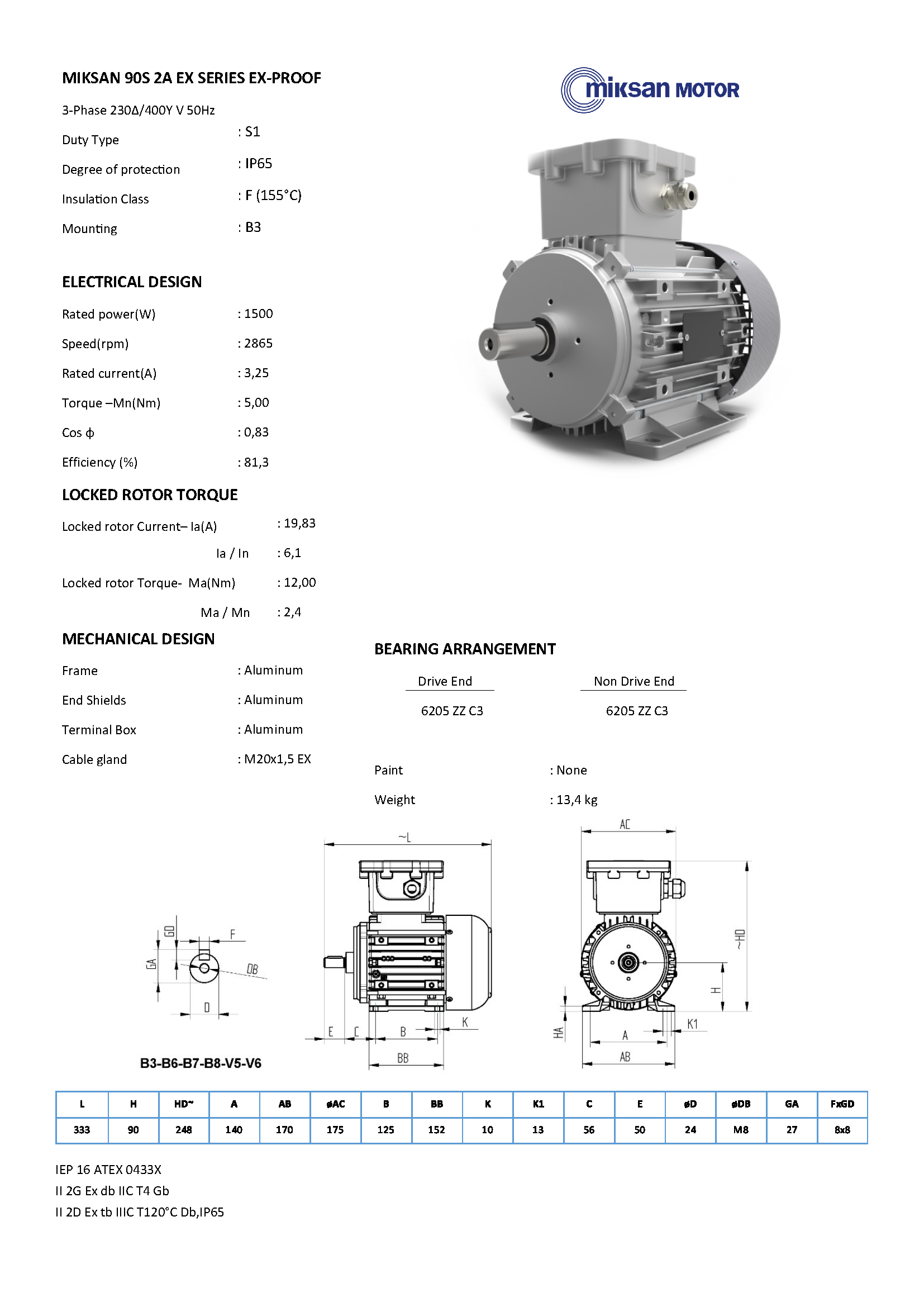

90S 2A EX (1,50 kW -1,80 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category | Description |
|---|---|
| Motor Name | 90S 2A EX |
| n (kW), 50 Hz | 1.50 |
| Pn (kW), 60 Hz | 1.80 |
| HP, 50 Hz | 2.00 |
| HP, 60 Hz | 2.40 |
| min-1, 50 Hz | 2907 |
| min-1, 60 Hz | 3490 |
| Tn, Nm | 4.93 |
| cos φ | 0.81 |
| In, 400V | 3.25 |
| Ia/In | 6.4 |
| Ma/Mn | 3.0 |
| Mk/Mn | 3.7 |
| J, kgm2 | 0.0013 |
| kg | 15.2 |
