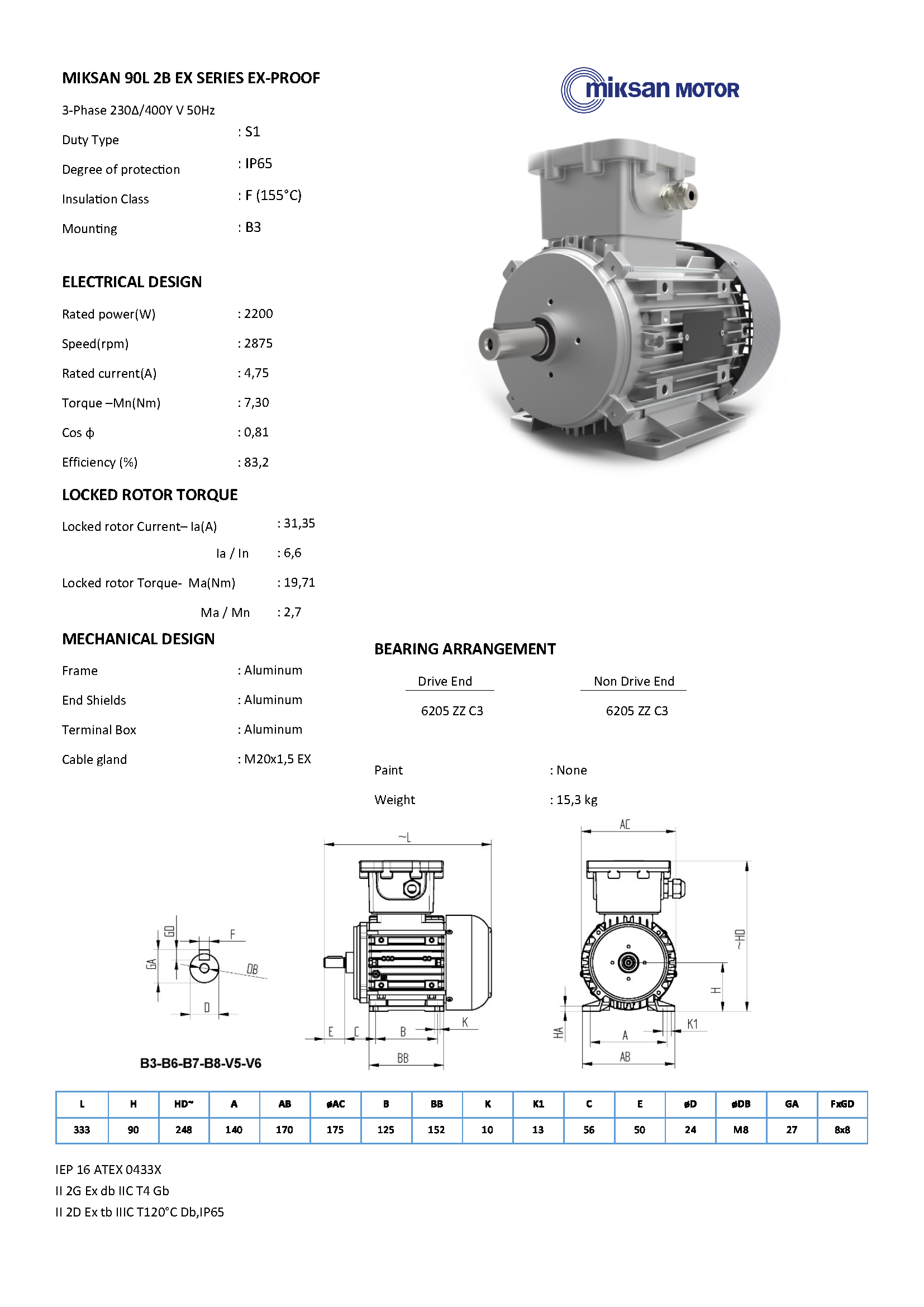

90L 2B EX (2,20 kW-2,64 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category | Description |
|---|---|
| Motor Name | 90L 2B EX |
| Pn (kW), 50 Hz | 2.20 |
| Pn (kW), 60 Hz | 2.64 |
| HP, 50 Hz | 3.00 |
| HP, 60 Hz | 3.60 |
| min-1, 50 Hz | 2875 |
| min-1, 60 Hz | 3450 |
| Tn, Nm | 7.30 |
| cos φ | 0.81 |
| In, 400V | 4.75 |
| Ia/In | 6.6 |
| Ma/Mn | 2.7 |
| Mk/Mn | 2.9 |
| J, kgm2 | 0,0016 |
| kg | 15.3 |
