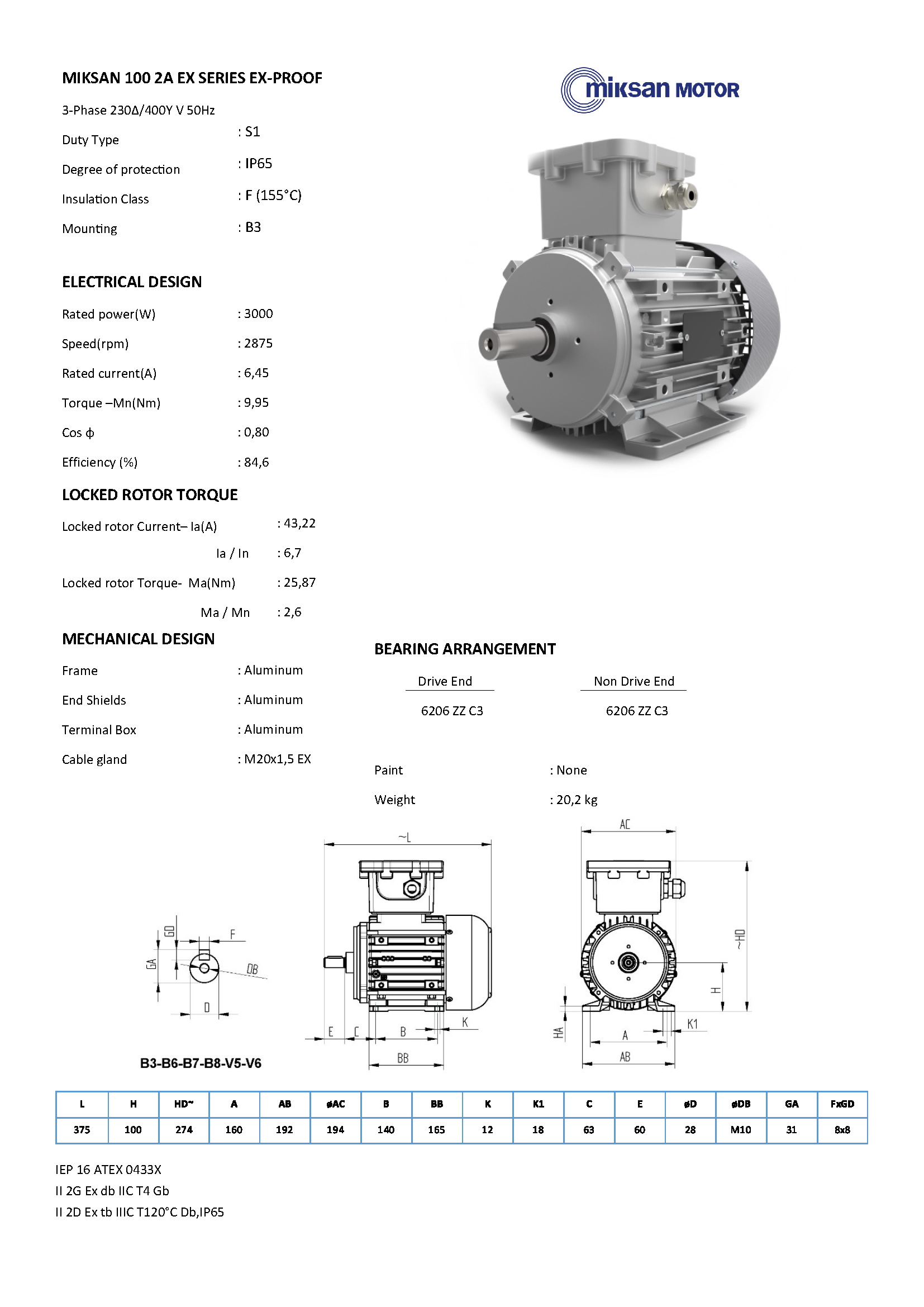

100 2A EX (3,0 kW - 3,6 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category | Description |
|---|---|
| Motor Name | 100 2A EX |
| Pn (kW), 50 Hz | 3.00 |
| Pn (kW), 60 Hz | 3.60 |
| HP, 50 Hz | 4.00 |
| HP, 60 Hz | 4.80 |
| min-1, 50 Hz | 2875 |
| min-1, 60 Hz | 3450 |
| Tn, Nm | 9.95 |
| cos φ | 0.80 |
| In, 400V | 6.45 |
| Ia/In | 6.7 |
| Ma/Mn | 2.6 |
| Mk/Mn | 3.1 |
| J, 10-3 kgm2 | 2.6 |
| kg | 20.2 |
