100 2B EX (4,00 kW-4,80 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category |
Description |
| Motor Name |
100 2B EX |
| Pn (kW), 50 Hz |
4.00 |
| Pn (kW), 60 Hz |
4.80 |
| HP, 50 Hz |
5.50 |
| HP, 60 Hz |
6.60 |
| RPM (min-1), 50 Hz |
2865 |
| RPM (min-1), 60 Hz |
3440 |
| Tn (Torque, Nm) |
13.2 |
| cos φ (Power Factor) |
0.88 |
| In (Input Current, 400V) |
7.50 |
| Ia/In (Starting Current/Operating Current) |
7.6 |
| Ma/Mn (Starting Torque/Operating Torque) |
2.7 |
| Mk/Mn (Starting Power/Operating Power) |
3.0 |
| J (Mass Moment of Inertia, 10-3 kgm²) |
6.8 |
| Weight (kg) |
23.7 |

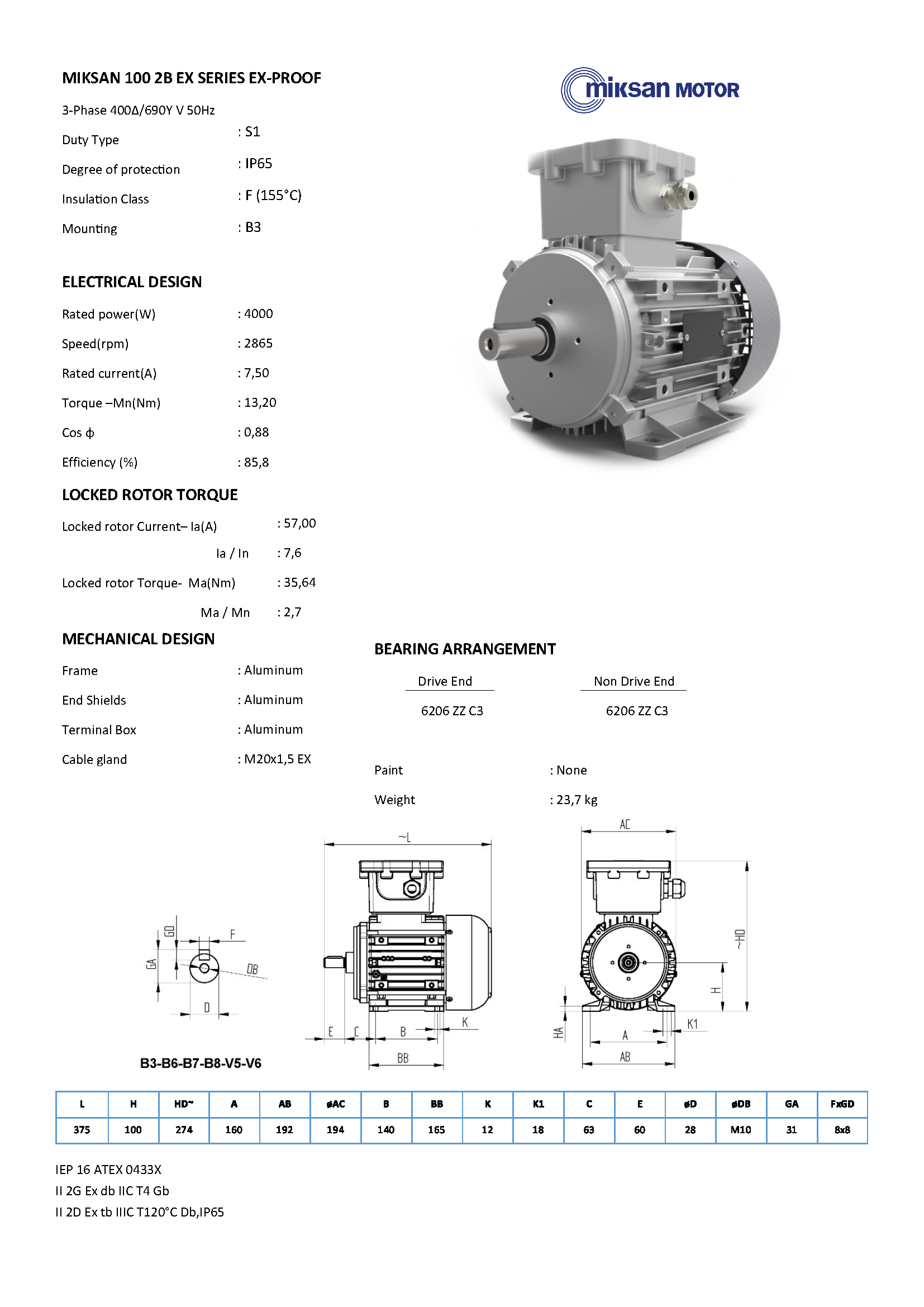

Technical Drawings
Note: Your browser may ask for permission to download multiple files.
