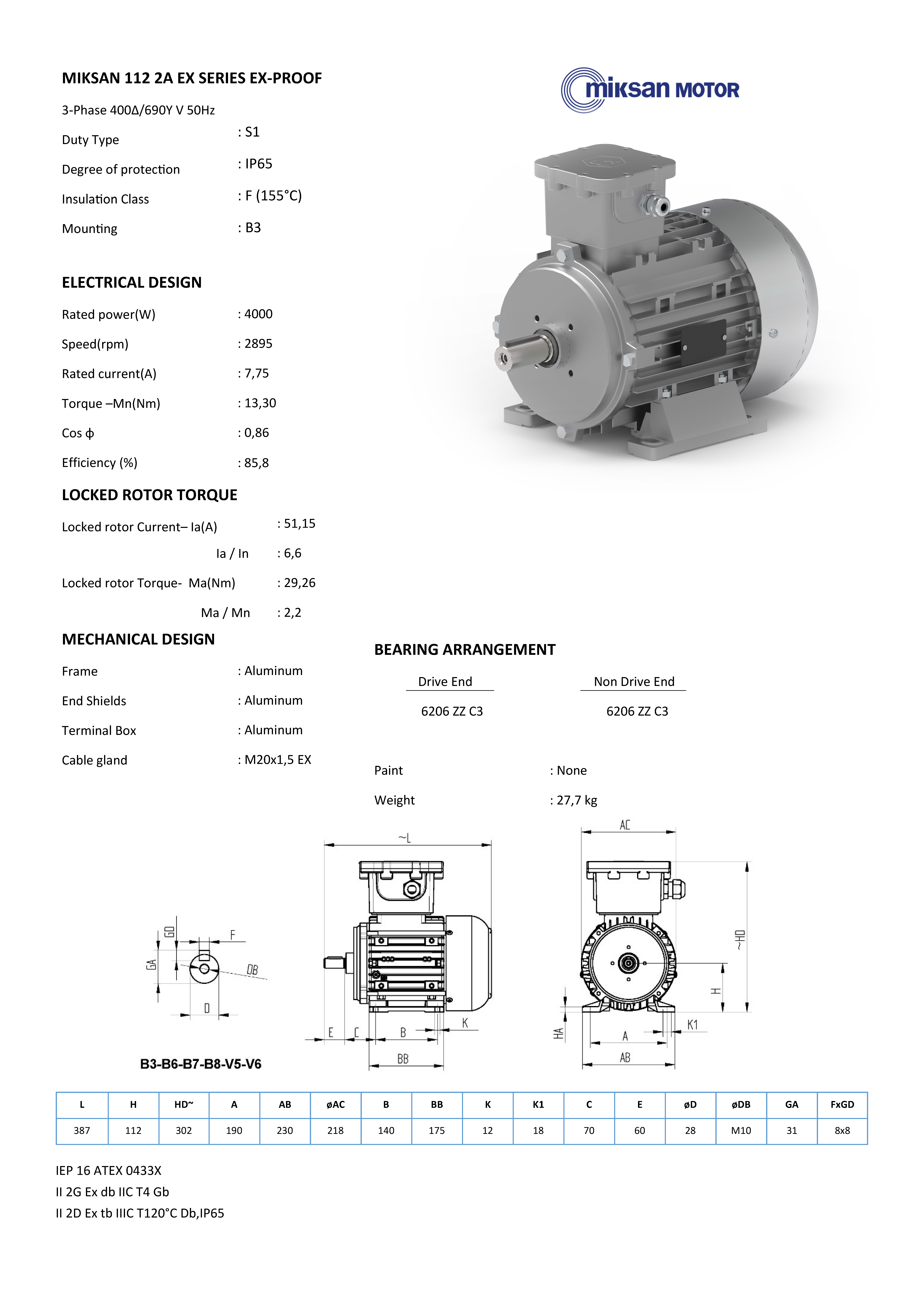

112 2A EX (4,00 kW - 4,80 kW) - Ex Series 2 Poles (3000 rpm) - 3 Phase Explosion
| Category | Description |
|---|---|
| Motor Name | 112 2A EX |
| Pn (kW), 50 Hz | 4.00 |
| Pn (kW), 60 Hz | 4.80 |
| HP, 50 Hz | 5.50 |
| HP, 60 Hz | 6.60 |
| min-1, 50 Hz | 2895 |
| min-1, 60 Hz | 3475 |
| Tn, Nm | 13.3 |
| cos φ | 0.86 |
| In, 400V | 7.75 |
| Ia/In | 6.6 |
| Ma/Mn | 2.2 |
| Mk/Mn | 2.6 |
| J, 10-3 kgm2 | 4.6 |
| kg | 27.7 |
