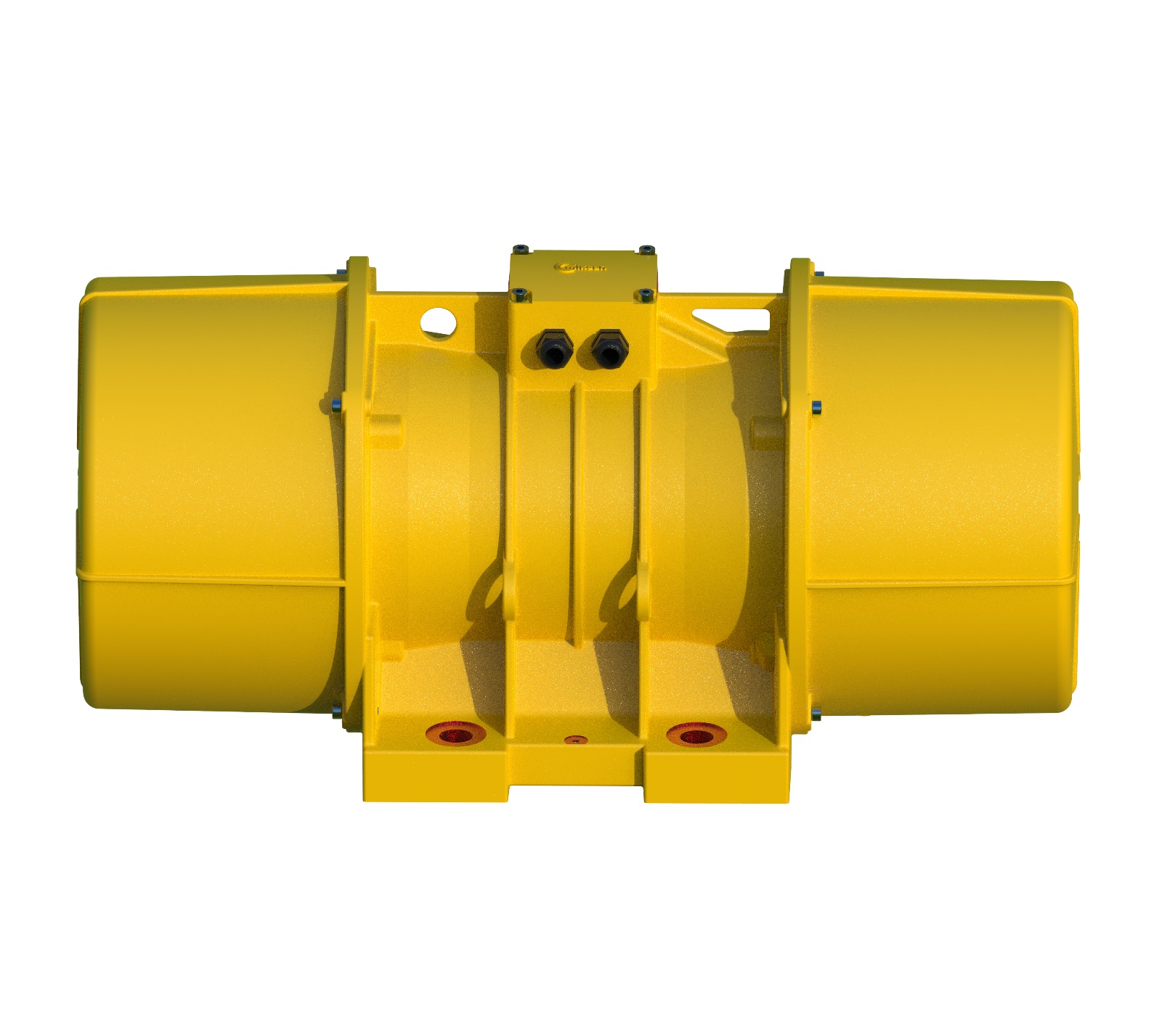

2 Polos (3000 rpm) - 3 Phase Vibration Motors - Products
| RPM | MODEL | Centrifugal Force (KG) | Centrifugal Force (N) | Static Moment (kgmm) | Weight (KG) | Nominal Voltage (V) | Max. Current (A) | Max. Input Power (kW) |
|---|---|---|---|---|---|---|---|---|
3000 |
VA 2-80 | 80 | 785 | 8 | 6,2 | 230/400 | 0,60/0,35 | 0,17 |
| VA 2-120 | 120 | 1177 | 12 | 6,6 | 230/400 | 0,60/0,35 | 0,17 | |
| VA 2-200 | 200 | 1962 | 20 | 7,0 | 230/400 | 0,60/0,35 | 0,17 | |
| VB 2-350 | 340 | 3335 | 34 | 10,2 | 230/400 | 0,87/0,50 | 0,22 | |
| VC 2-500 | 500 | 4905 | 50 | 14,5 | 230/400 | 1,55/0,90 | 0,37 | |
| VC 2-700 | 700 | 6867 | 70 | 15,5 | 230/400 | 1,55/0,90 | 0,37 | |
| VD 2-750 | 790 | 7750 | 78 | 21,3 | 230/400 | 1,90/1,10 | 0,69 | |
| VD 2-1100 | 1048 | 10281 | 104 | 22,3 | 230/400 | 2,34/1,35 | 0,75 | |
| VE 2-1500 | 1480 | 14519 | 147 | 51,3 | 230/400 | 5,20/3,00 | 1,3 | |
| VE 2-1800 | 1770 | 17364 | 176 | 52,0 | 230/400 | 5,20/3,00 | 1,3 | |
| VE 2-2400 | 2360 | 23152 | 234 | 54,0 | 230/400 | 6,00/3,50 | 1,6 | |
| VG 2-3800 | 2960 | 29038 | 294 | 70,0 | 230/400 | 7,80/4,50 | 2,0 | |
| VG 2-3800 | 3745 | 36708 | 372 | 91,0 | 230/400 | 7,80/4,50 | 2,0 | |
| VH 2-4800 | 4800 | 47088 | 477 | 91,0 | 230/400 | 7,80/4,50 | 2,0 | |
| VL 2-6000 | 5900 | 57893 | 586 | 190,0 | 230/400 | 10,50/6,10 | 3,0 | |
| VL 2-9000 | 8900 | 87309 | 885 | 190,0 | 230/400 | 10,50/6,10 | 3,0 |
