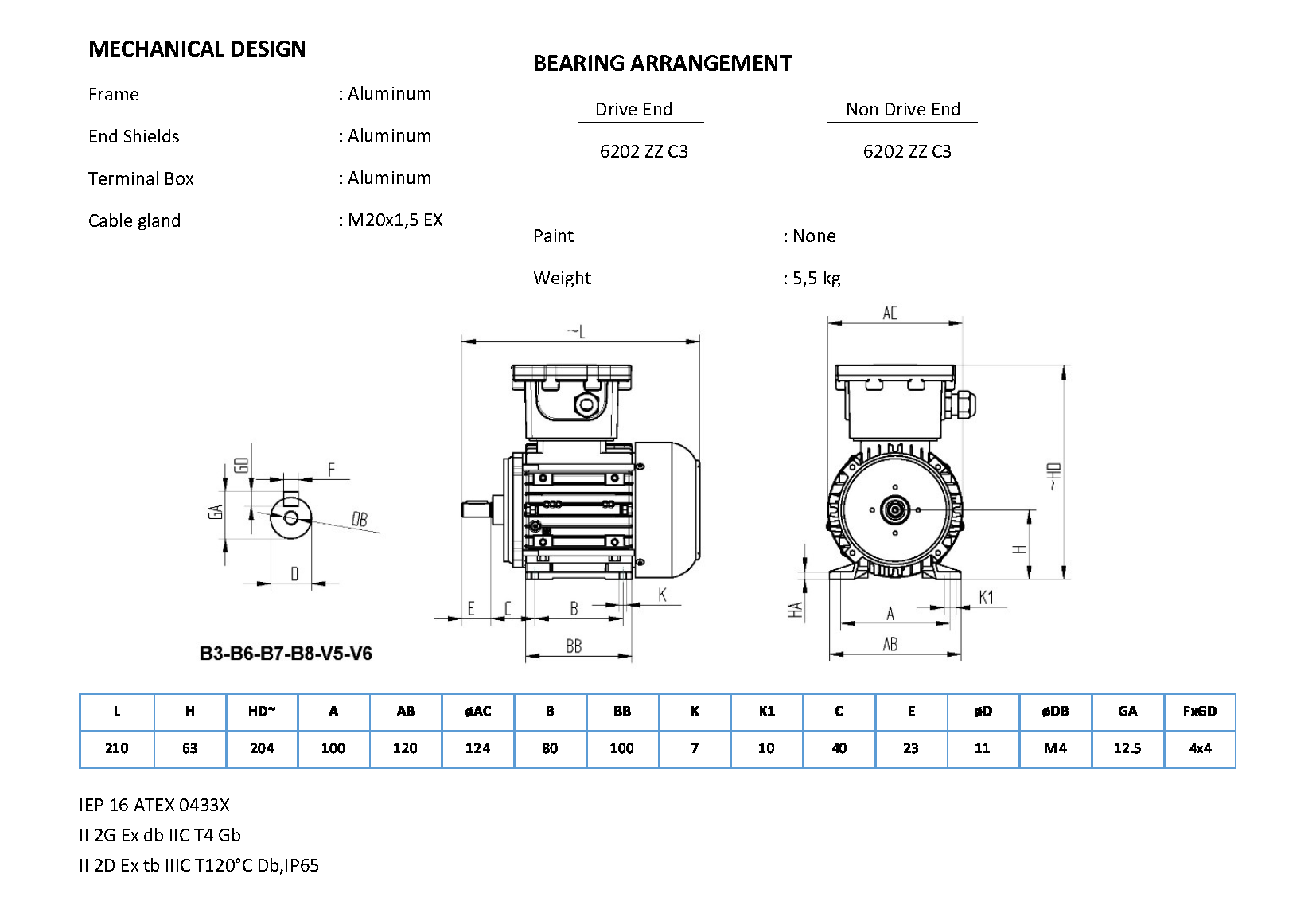

63 4C EX - Ex Series 4 Pole - 3 Phase Explosion
| Category | Description |
|---|---|
| Motor Name | 63 4C EX |
| Pn (kW), 50 Hz | 0.25 |
| Pn (kW), 60 Hz | 0.30 |
| HP, 50 Hz | 0.34 |
| HP, 60 Hz | 0.41 |
| RPM (min-1), 50 Hz | 1320 |
| RPM (min-1), 60 Hz | 1585 |
| Tn (Torque, Nm) | 1.95 |
| cos φ (Power Factor) | 0.66 |
| In (Input Current, 400V) | 1.905 |
| Ia/In (Starting Current/Operating Current) | 2.9 |
| Ma/Mn (Starting Torque/Operating Torque) | 2.0 |
| Mk/Mn (Starting Power/Operating Power) | 2.2 |
| J (Mass Moment of Inertia, 10-3 kgm²) | 0.3 |
| Weight (kg) | 5.5 |
