| Category | Description |
|---|---|

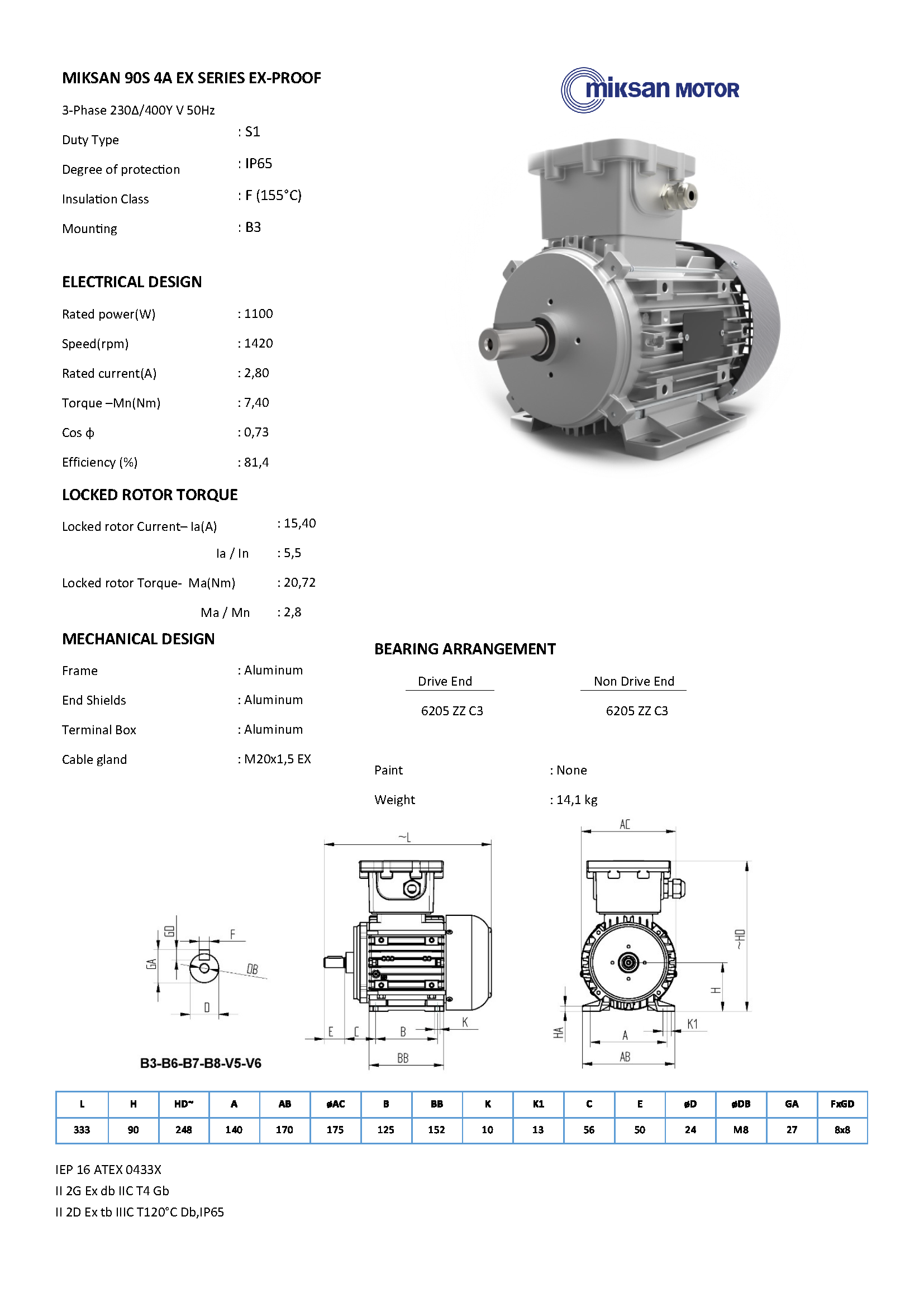

| Motor Name | 90S 4A EX |
| Pn (kW), 50 Hz | 1.10 |
| Pn (kW), 60 Hz | 1.32 |
| HP, 50 Hz | 1.50 |
| HP, 60 Hz | 1.80 |
| RPM (min-1), 50 Hz | 1420 |
| RPM (min-1), 60 Hz | 1705 |
| Tn (Torque, Nm) | 7.40 |
| cos φ (Power Factor) | 0.73 |
| In (Input Current, 400V) | 2.80 |
| Ia/In (Starting Current/Operating Current) | 5.5 |
| Ma/Mn (Starting Torque/Operating Torque) | 2.8 |
| Mk/Mn (Starting Power/Operating Power) | 3.1 |
| J (Mass Moment of Inertia, 10-3 kgm²) | 0.8 |
| Weight (kg) | 14.1 |
