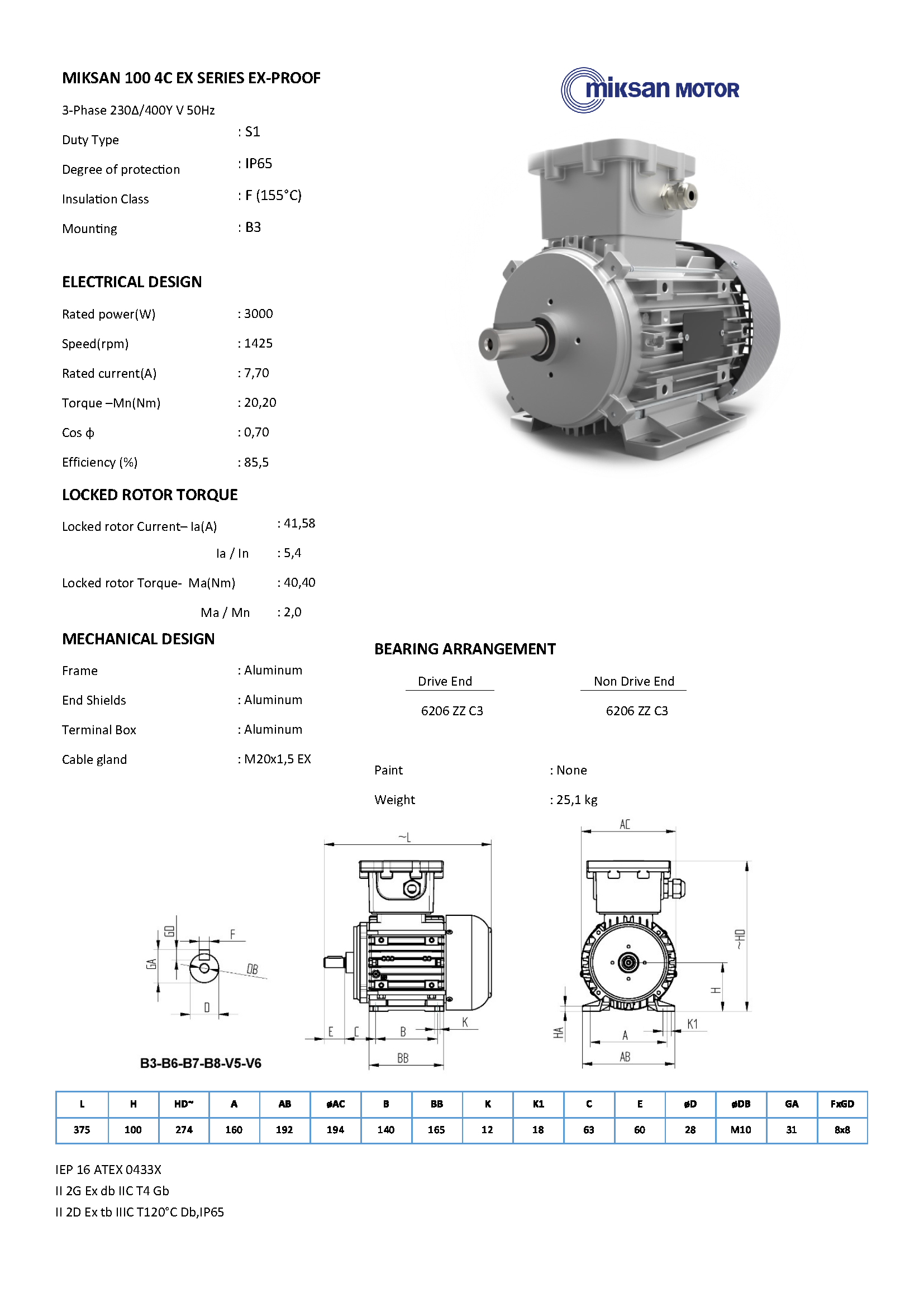

100 4C EX - Ex Series 4 Pole - 3 Phase Explosion
| Category | Description |
|---|---|
| Motor Name | 100 4C EX |
| Pn (kW), 50 Hz | 3.00 |
| Pn (kW), 60 Hz | 3.60 |
| HP, 50 Hz | 4.00 |
| HP, 60 Hz | 4.80 |
| RPM (min-1), 50 Hz | 1425 |
| RPM (min-1), 60 Hz | 1710 |
| Tn (Torque, Nm) | 20.2 |
| cos φ (Power Factor) | 0.70 |
| In (Input Current, 400V) | 7.70 |
| Ia/In (Starting Current/Operating Current) | 5.4 |
| Ma/Mn (Starting Torque/Operating Torque) | 2.0 |
| Mk/Mn (Starting Power/Operating Power) | 2.5 |
| J (Mass Moment of Inertia, 10-3 kgm²) | 1.6 |
| Weight (kg) | 25.1 |
