VP 380 (50 Hz) - VP 3 Series - Screw Pumps

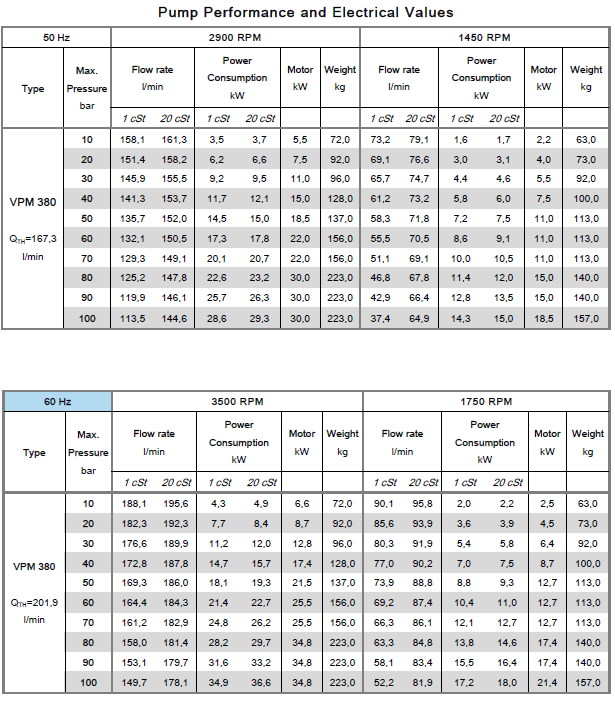

| 50 Hz | 2900 RPM | 1450 RPM | |||||||||||
| Type | Max. Pressure bar |
Flow rate l/min |
Power Consumption kW |
Motor kW |
Weight kg |
Flow rate l/min |
Power Consumption kW |
Motor kW |
Weight kg |
||||
| 1 cSt | 20 cSt | 1 cSt | 20 cSt | 1 cSt | 20 cSt | 1 cSt | 20 cSt | ||||||
| VPM 380 Qₜₕ=167,3 l/min |
10 | 158,1 | 161,3 | 3,5 | 3,7 | 5,5 | 72,0 | 73,2 | 79,1 | 1,6 | 1,7 | 2,2 | 63,0 |
| 20 | 151,4 | 158,2 | 6,2 | 6,6 | 7,5 | 92,0 | 69,1 | 76,6 | 3,0 | 3,1 | 4,0 | 73,0 | |
| 30 | 145,9 | 155,5 | 9,2 | 9,5 | 11,0 | 96,0 | 65,7 | 74,7 | 4,4 | 4,6 | 5,5 | 92,0 | |
| 40 | 141,3 | 153,7 | 11,7 | 12,1 | 15,0 | 128,0 | 61,2 | 73,2 | 5,8 | 6,0 | 7,5 | 100,0 | |
| 50 | 135,7 | 152,0 | 14,5 | 15,0 | 18,5 | 137,0 | 58,3 | 71,8 | 7,2 | 7,5 | 11,0 | 113,0 | |
| 60 | 132,1 | 150,5 | 17,3 | 17,8 | 22,0 | 156,0 | 55,5 | 70,5 | 8,6 | 9,1 | 11,0 | 113,0 | |
| 70 | 129,3 | 149,1 | 20,1 | 20,7 | 22,0 | 156,0 | 51,1 | 69,1 | 10,0 | 10,5 | 11,0 | 113,0 | |
| 80 | 125,2 | 147,8 | 22,6 | 23,2 | 30,0 | 223,0 | 46,8 | 67,8 | 11,4 | 12,0 | 15,0 | 140,0 | |
| 90 | 119,9 | 146,1 | 25,7 | 26,3 | 30,0 | 223,0 | 42,9 | 66,4 | 12,8 | 13,5 | 15,0 | 140,0 | |
| 100 | 113,5 | 144,6 | 28,6 | 29,3 | 30,0 | 223,0 | 37,4 | 64,9 | 14,3 | 15,0 | 18,5 | 157,0 | |
